Brushless Motor (Agile 5.5)

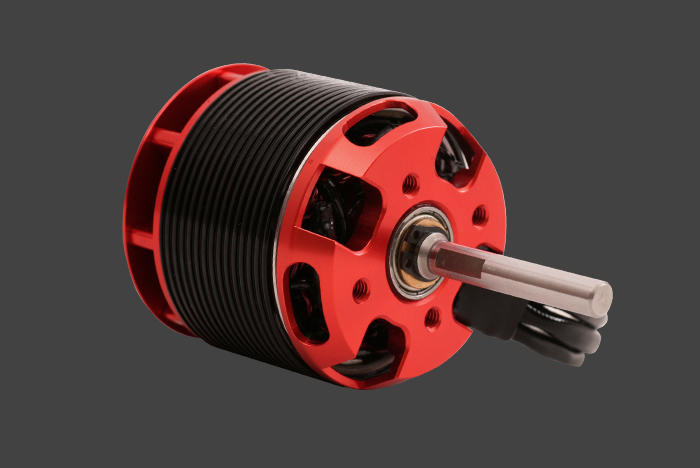

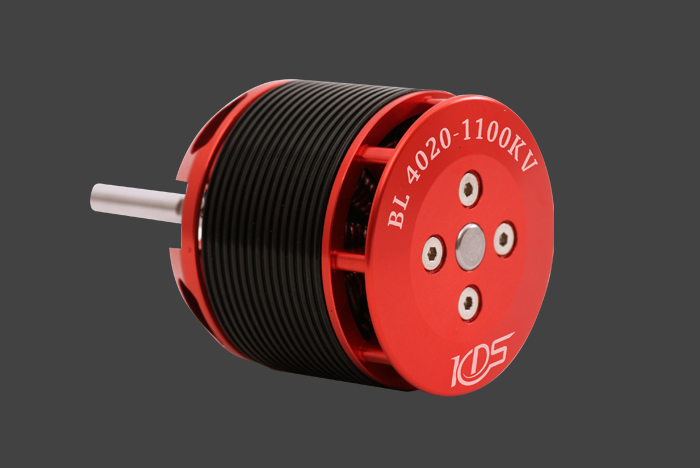

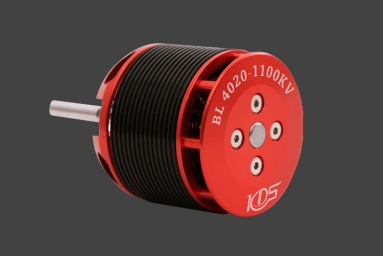

This is BL 4020-1100KV motor from KDS model. Elegant appearance and unique cooling design structure for the powerful cooling airflow. The latest 0.2mm imported silicon steel sheet with a high performance aluminum iron boron magnetic material N45SH as the stator core and winded with EIW(h)220' wire. 220'c high temperature resistant glue are used to fix the inverted tooth fixed magnet to give maximum holding strength of the magnet for high powered operation or external impact. An imported NSK dual cover ball bearing for the smoothness motor result, with special processing technologies using  high performance materials, this motor will give you  more power for the satisfaction for all types of flying.

Item Name：BL 4020-1100KV
KV value ：1100KV
Poles ：10P
Stator diameter：41mm
Thickness of lamination：22mm
Number of slots：12
Coil number：5 Turn Delta
No load(IO/20V) current：5.4A
Resistance：0.007 Ω
Max current：80 A
Max continuous power：1700W
Outer diameter：50mm
Extend shaft diameter： 6.0mm
Shaft length：87.5mm
Motor length：48.5mm
Operation temperature ： ≤130 °C
Max temperature  ： ≤180
Suitable ESC ： ≥60A
Battery range ：5-8S
Weight：315
