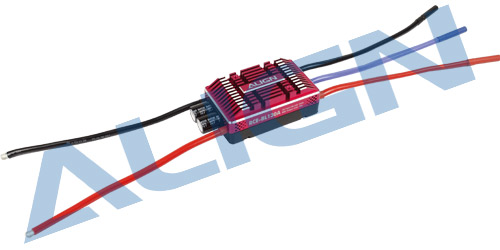

RCE-BL130A Brushless ESC

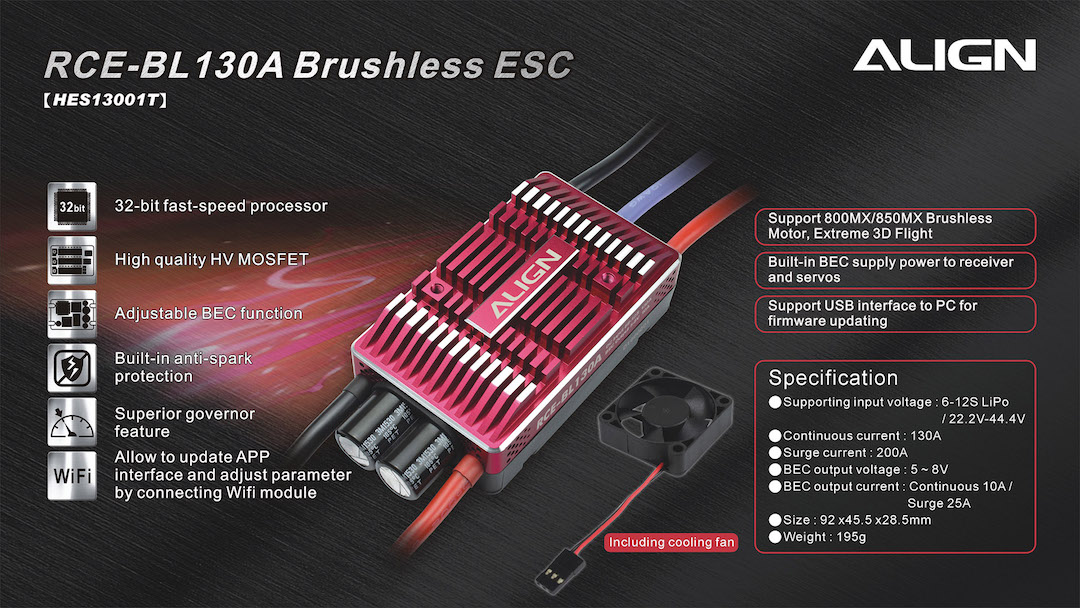

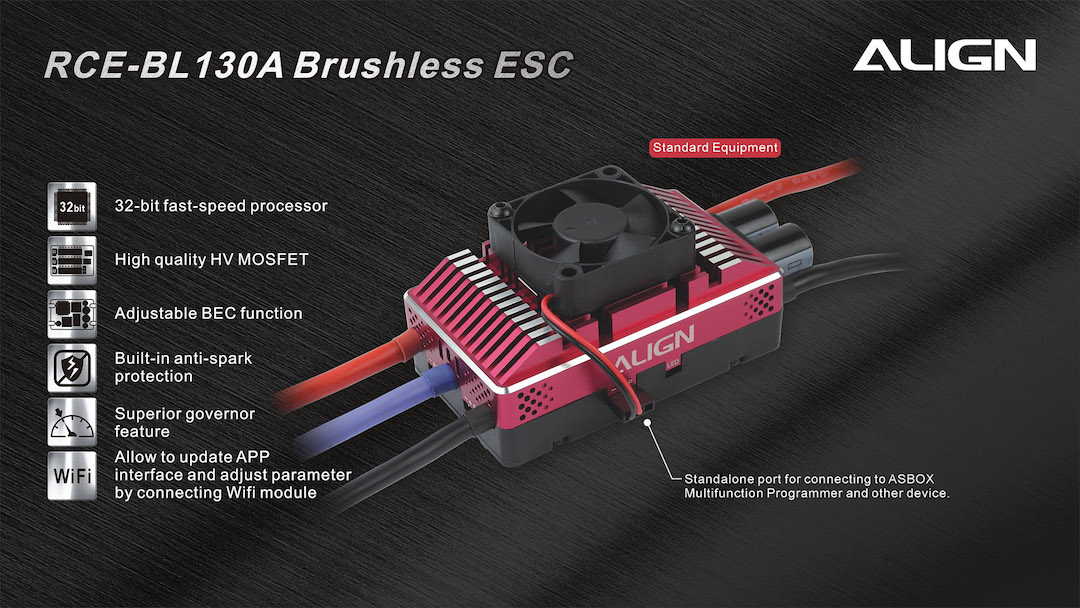

●32-bit fast-speed processor.
●High quality MOSFET.
●Adjustable BEC function, supply power to receiver and servos.
●Built-in anti-spark protection.
●Superior governor feature.
●Support 800MX/850MX Brushless Motor, Extreme 3D Flight.
●Support USB interface to PC for firmware updating.

●Supporting input voltage: 6~12S Lipo / 22.2V~44.4V
●Continuous current: 130A
●Surge current: 200A
●BEC output voltage: 5~8V
●BEC output current: Continuous 10A / Surge 25A
●Size: 92x45.5x28.5mm
●Weight: 195g

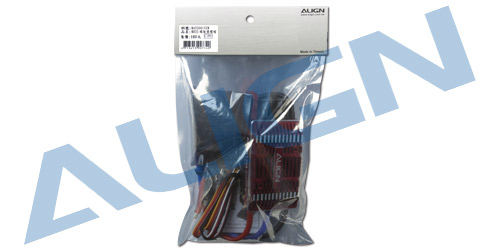

●130A Brushless ESC x 1

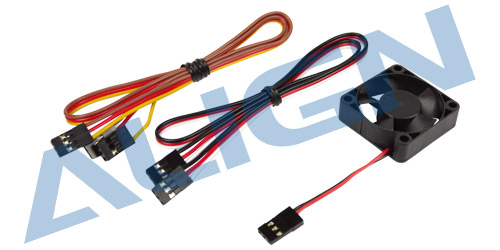

●130A Brushless ESC fan x 1
●130A Brushless ESC screw(M3x14mm) x 2
●BEC output wire set x 1
●Throttle signal wire set x 1
●Heat shrink tube x 2
●Φ5.5mm gilt terminal x 3
●Φ7 Heat shrink tube(Φ7x25mm) x 3
