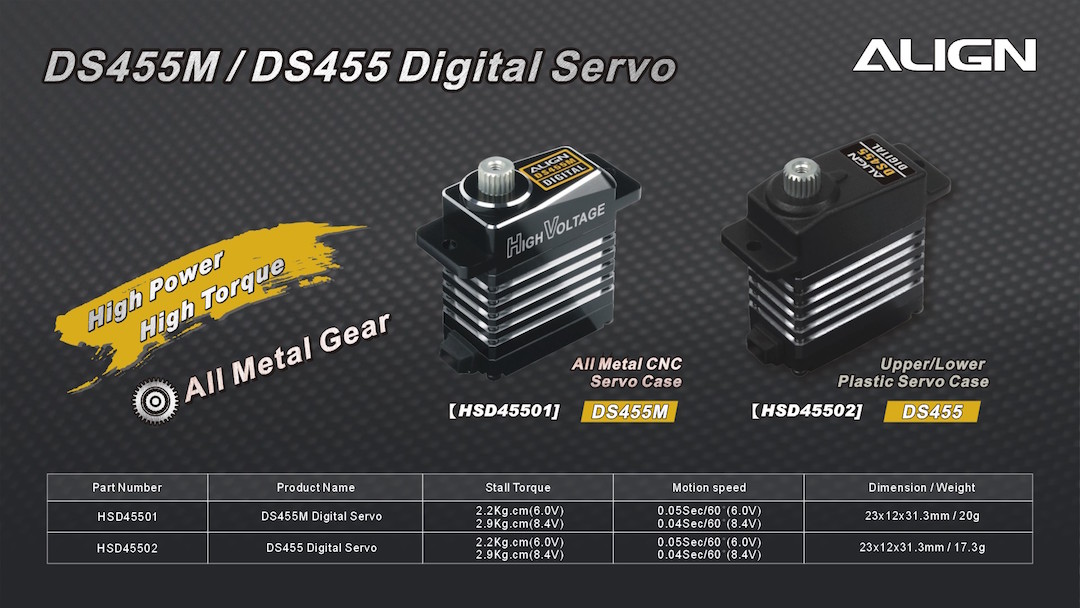

DS455M Digital Servo

Artikelnr: HSD45501

Powerful and precise servo, suitable for T-Rex 250/450 rudder use.


Micro size rudder servo, max 8,4V.

Specs : 6,0V -  2.2 kg-cm -  0.05 sec/60°

Specs : 8,4V -  2.9 kg-cm -  0.04 sec/60°

42,90
Voorraad
Voorraad:
  0  items
Beschrijving

HSD45501

Extra informatie

●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 250/450 rudder use.
●Supports 8.4v high voltage input to provide optimal speed and torque performance of the servo.


●Stall torque: 2.2kg.cm(6.0V)
                    2.9kg.cm(8.4V)
●Motion speed: 0.05sec/60°(6.0V)
                       0.04sec/60°(8.4V)
●Rating voltage: DC 6.0-8.4V
●Temperature range: -20°C ~ +60°C
●Dimension: 23 x 12 x 31.3mm
●Weight: 20g

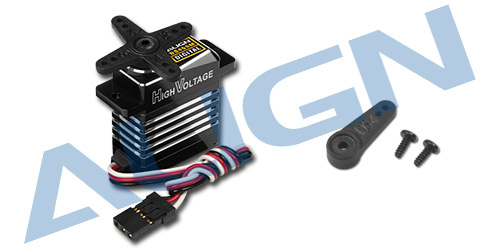

●DS455 Digital Servo x 1
●Socket Button Head Self Tapping Screw x 2
●Socket Screw x 1
●Servo Arm x 2
