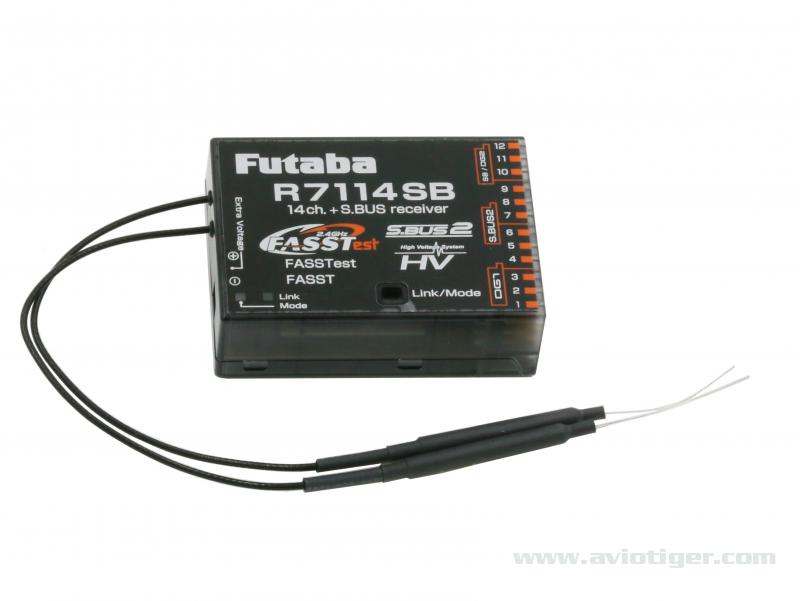

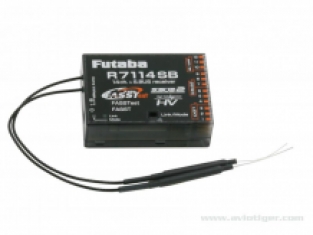

The Futaba R7114SB receiver is a high-end 14-channel receiver for professional demands. This receiver uses the R7108SB's dual diversity antenna to improve the range of the receiver if needed. Besides telemetry with full coverage, it supports the S.BUS / S.Bus2 systems and FASST & FASS TEST transmission systems.
Receiver 14 channels FASSTest 2.4 GHz
telemetry receiver with S.Bus2
Telemetry function
Outputs: S.BUS / S.Bus2
Servo outputs 14 PWM
High voltage
Dual diversity antenna
FASST multi: normal mode or mode high speed can be selected
Features: 14 channels
Dimensions: 50 x 37 x 15.9 mm
Weight approx. 21.9 gr
Modulation: FASST, FASSTest
Voltage range: 4.8 - 8.4 V
SBUS: S.Bus2
Extra voltage port: 0V-70V DC
