Futaba 10J-R3008SB M2 incl. LiPo en lader

Artikelnr: 01000111

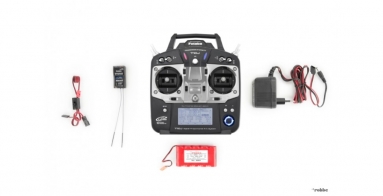

Set contents

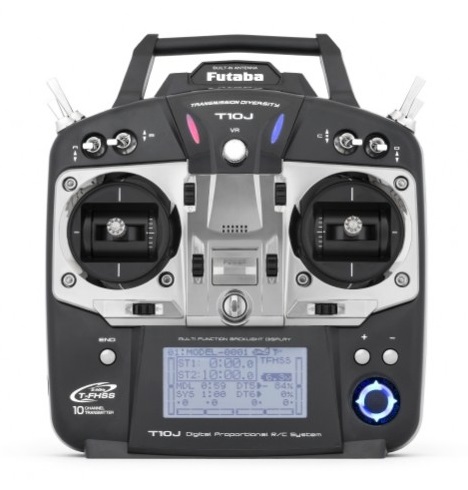

  • 1 T10J 2.4 GHz T/S-FHSS transmitter
  • 1 R3008SB 2.4 GHz T-FHSS receiver
  • 1 2800 mah lipo transmitter battery
  • 1 Tx-Rx 150 mA plug-type charger
  • 1 Switch harness with charge socket
  • 1 Operating instructions

412,00
Voorraad
Voorraad:
  0  items
Beschrijving

01000111

Extra informatie

Transmission
• 10 (8+2) channels
• Can be switched from T-FHSS (ten channels) to S-FHSS (eight channels) - modulation.
• T-FHSS® frequency-hopping technology with integral telemetry
• Broad channel spread is responsible for good interference rejection and ultra-fast response, giving a sensation of direct, accurate control.
• FEC technology, T-FHSS® receivers constantly scan the input signal, and apply an intelligent error correction process
• 100mW transmitter power
• No loss of response speed even when the frequency band is densely occupied
• Real-Time Response
• Outstanding range
• Direct, ultra-fast, fully digital modulation for extremely fast response
• Easy Link - fast, extremely simple binding process between transmitter and receiver
• Fast, reliable automatic re-binding even under difficult conditions
• Intelligent servo timing for simultaneous servo addressing and prevention of servo timing differences
• Dual Aerial Diversity – lightning-fast switching between two receiver aerials for optimum reception signal quality (according to receiver)
• Integral range-check function for checking effective range before flying

Telemetry
• Synchronised bi-directional communication between transmitter and receiver with high telemetry data rate (up to nine times per second)
• 32 telemetry channels
• Long telemetry range
• Real-time display of telemetry data on integral screen
• Speech output via optional earphone with 3.5 mm barrel connector
• Melody and sound output (via optional internal beeper or earphone)
• Vibration alarm
• Receiver battery low voltage warning system for monitoring the receiver battery
• Freely configurable output of telemetry data using screen, sound, speech and vibration.
• Compatible with all Futaba telemetry sensors Ergonomics

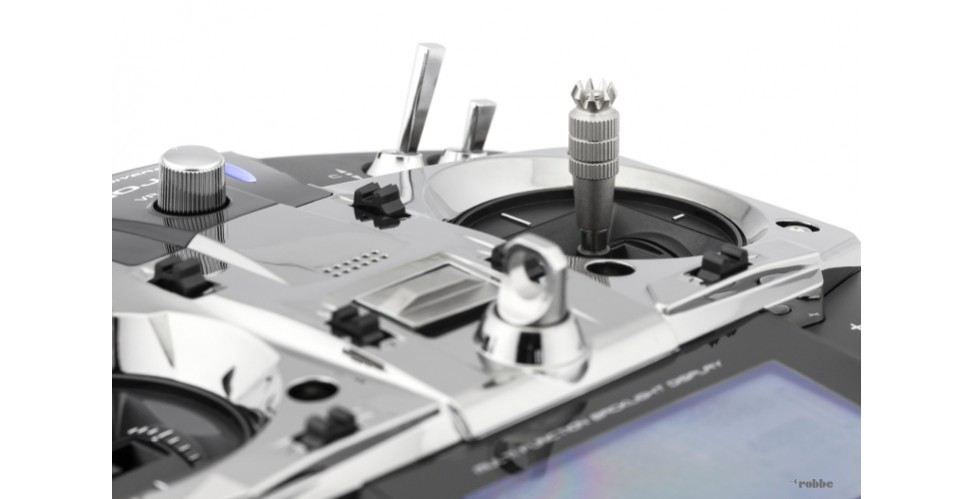

• Precision stick units for fine, accurate control
• The "Open-Stick" mechanism features special bearings, and is virtually devoid of lost motion
• Large 65 x 34 mm backlit screen (128 x 64 dots) with high contrast for excellent legibility even in strong sunlight

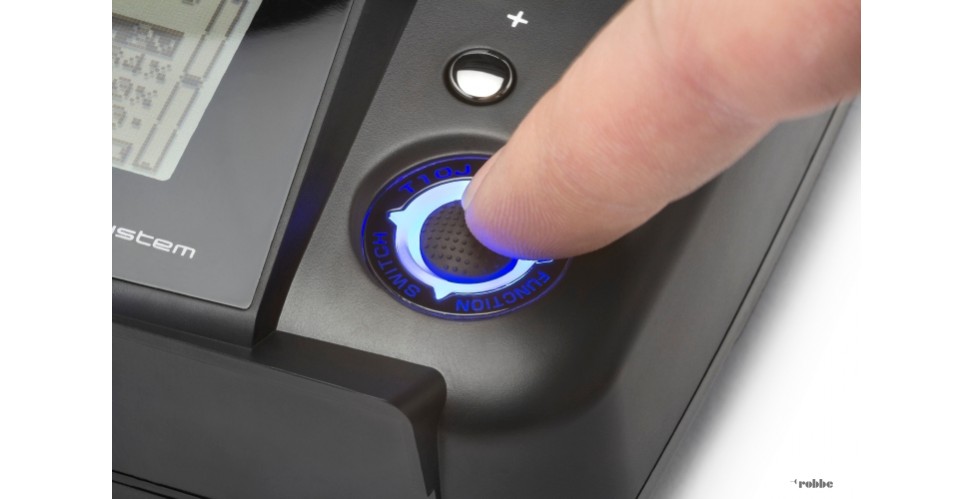

• Graphic user interface and intuitive 3-D hot-key for simple operation of all functions • Seven languages available: German, English, French, Italian, Spanish, Japanese or Dutch
• Consistent, intuitive Futaba operating system for simple change-over
• Most transmitter controls freely assignable

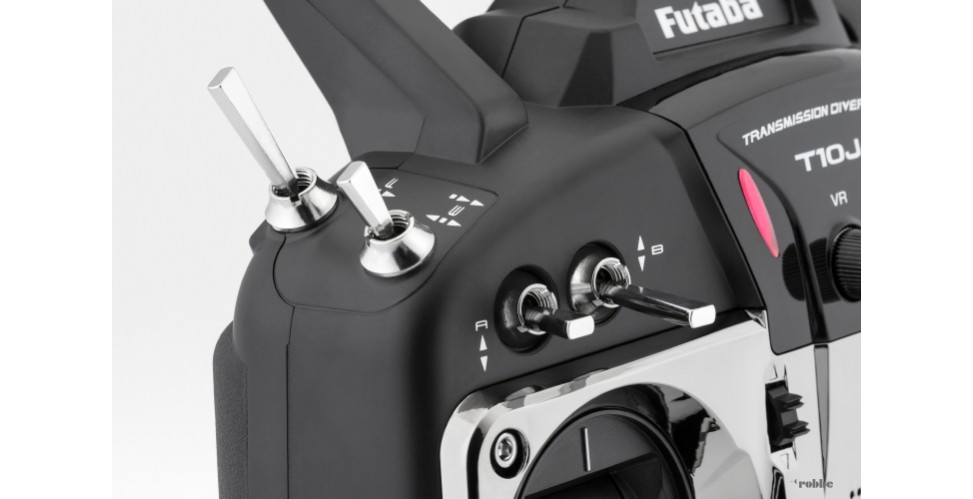

• Fully expanded, with nineteen transmitter controls
• Switchable stick modes (1-4) Trainer function
• using either optional cable or wirelessly using radio module or S.BUS receiver
• with individual function transfer (Teacher can release individual functions to the Pupil) and mix-mode (Teacher can override all functions)

S.BUS technology
• Digital BUS technology for modelling
• Pioneering serial control bus
• Fully digital inclusion of S-BUS components such as S.BUS servos, S.BUS speed controllers and S.BUS sensors
• The eight-channel T-FHSS receiver features eight PWM outputs and one digital S.BUS socket for S.BUS servos, S.BUS speed controllers and telemetry sensors.
• Compatible with S.BUS1 and S.BUS2 (bi-directional)
• Permits the ideal positioning of all components, with efficient wiring
• Future-proof digital technology for all future Futaba components
• S.BUS components can be programmed and registered directly at the transmitter
• Serial digital signal, ideal for flybarless systems, gyros and battery backers Functions - General
• 30 internal model memories
• Model memory transfer by radio between two T10J transmitters, or from T8J to T10J.
• Graphic servo monitor provides a clear display of all servo travels, with servo test function
• Wide receiver voltage range of 3.6 V to 8.4 V allows broad choice of receiver battery types • Future-proof: software update facility using optional CIU-2 adapter.
• Mixer menus for programming all servos and mixer functions according to model type
• Special model type specific mixer programs for:
- Power models (2…4 wing flaps)
- Model gliders (2…6 wing flaps)
- Helicopters (8 swashplate types)
- More information: see "Functions in detail"
• Five flight modes (Helicopter menu; three flight modes in the Glider menu) for each model memory, freely programmable to provide optimum settings for each flight mode
• Programs for all tail types: normal, V-tail, delta, flying wing, separate elevators (Ailvator)
• Servo travel adjustment for all proportional channels
• Servo reverse and centre offset for channels 1…8
• Digital trim buttons - trim value memory when model memory is changed.
• Trim value display in Home menu • Fail-safe and Battery fail-safe setting
• Two operating hours timers, one of them model memory specific
• Two freely adjustable stopwatches Software list Base functions:
• Alarm, mixer, low voltage, timer
• Model select, 30 model memories, model copy
• Trainer mode, with individual function transfer and / or Mix mode.
• Stick Mode 1...4
• Throttle function reverse
• Multi-lingual transmitter software
• Operating hours timer
• Range-check mode
• User name (ten characters)
• Digital operating voltage display

Model functions
• Model name (ten characters)
• Servo reverse, channels 1…8
• Fail-safe (channels 1…8)
• Servo travel adjustment (ATV / EPA)
• Servo centre offset (sub-trim)
• Trim value memory
• Trim increment adjustment
• Throttle cut
• Free channel selection (5…10) and transmitter control selection
• Two count-up / count-down stopwatches
• Model timer
• Digital stick trim with variable increment
• Idle trim with reverse (ATL)
• Reset

Fixed-wing model aircraft:
• 3 x switchable control travel (D/R)
• 4 x Exponential function (EXP)
• 6 programmable mixers with offset (4 x linear, 2 x 5-point)
• Flaperon mixer with differential
• Flaperon trim (flaperon mixer value)
• V-tail mixer (V-tail)
• Delta mixer (elevon) with differential
• Aileron -> rudder • Elevator -> flaperon
• Flaperon -> elevator
• Airbrake (ailerons as flaps / airbrakes)
• Ailvator mixer (aileron - elevator)
• Snap-roll
• Gyro mixer (2/3 rates)
• Throttle curve
• Propeller pitch
• Throttle delay
• Idle 2
• Throttle - needle valve mixer
• Model type selection

Model helicopter:
• 3 x switchable control travel (D/R)
• 4 x Exponential function (EXP)
• 6 programmable mixers with offset (4 x linear, 2 x 5-point)
• 5-point throttle curve, Normal, Idle-up 1, 2 and 3
• 5-point collective pitch curve, Normal, Idle-up 1, 2, 3 and auto-rotation
• Hover throttle trim (mix trimmer)
• Hover collective pitch trim
• Gyro gain set-up menu
• Offset mixer (roll - pitch-axis - tail rotor), all flight modes
• Auto-rotation with tail rotor offset
• Collective pitch -> tail rotor mixer
• Swashplate - throttle mixer
• Governor set-up menu (speed regulator)
• Swashplate travel adjustment (AFR for roll - pitch-axis - collective pitch)
• H1, H2, H3 (1:1:1), H4, HR3, HE3, HN3, H4X swashplate linkage types
• Collective pitch min. and max. adjustment
• Throttle - needle valve mixer
• Swashplate ring mixer
• Swashplate mixer menu


Model glider:
• 3 x switchable control travel (D/R)
• 4 x Exponential function (EXP)
• 6 programmable mixers with offset (4 x linear, 2 x 5-point)
• Aileron - rudder
• Rudder - aileron
• Camber-changing flaps
• Flap mixer
• Butterfly (crow) and Butterfly - elevator
• Flap - elevator
• Elevator - flap
• Aileron - flap
• Aileron - airbrake
• V-tail
• Motor
• Gyro mixer
• Model type selection

Set contents

  • 1 T10J 2.4 GHz T/S-FHSS transmitter
  • 1 R3008SB 2.4 GHz T-FHSS receiver
  • 1 2800 mah lipo transmitter battery
  • 1 Tx-Rx 150 mA plug-type charger
  • 1 Switch harness with charge socket
  • 1 Operating instructions
