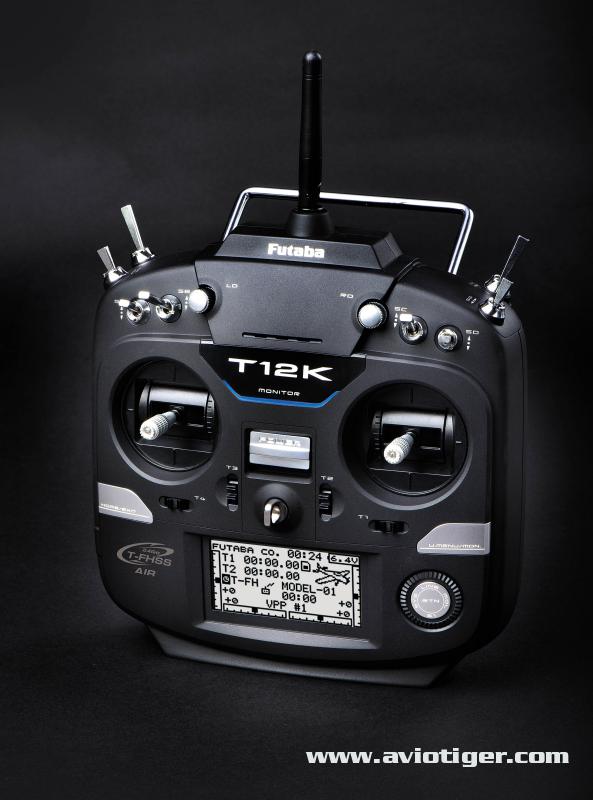

T12K TRANSMITTER:
- 14 channels T-FHSS AIR
transmitter - 2.4GHZ frequency band - 100mw
output power.
-EIRP system: T-FHSS, S-FHSS switchable.
-R3008SB
RECEIVER 4.8V-7.4V power supply:
- T-FHSS Air-2.4G system, dual antenna, S.BUS system -Frequency band
: 2.4GHz
- RF output power: 25mW EIRP
-Power supply: 4.8V ~ 7.4 battery V or dimmer regulated output ...
- Size: 24.9 x 47.3 x 14.3 mm
- Weight: 10.1 g
System menu functions
-T-HSS, S-FHSS
mode -Compatible Futaba telemetry system
-14 channels: 12 proportional / 2 switches
- Airplanes, gliders and helicopters mode
-Free update via internet
-Card compartment (SD: 32MB-2GB; SDHC 4GB-32GB)
-Tx battery alarm
-30 models in memory
-Adjustable stick voltage
-4 types of alarm vibration
-Audio jack for telemetry
-Transfer of model
data -S-BUS compatible receiver -Model
and user name on 10 characters
-128x64 dot LCD display
-Switch operating direction
-Data concerning the transmitter
-Radio usage clock
Menu functions Linkage
-Test and display of servos
-Training mode -Management
of model types
-Management of T-FHSS or S-FHSS mode
-Assignment of functions on the channels
-Adjustment of the servo neutral
-Adjustment of the servo speed (S-bus)
-Adjustment of the operating direction of the servos
-Adjustment of the FailSafe function on the 14 channels
-Adjustment of the servo stroke
-Adjustment of engine cut-off
-Chronometer and countdown timer
-Adjustment of digital trimmers
Functions of the "Models" menu for airplanes, gliders and multirotors
-7 Programmable mixes including 2 with 5-point curve
-Adjustment of the gas
curve ailerons
-Adjusting the flaps
-Mixing ailerons and curvature flaps
-Mixing ailerons and nose-down brake
-Mixing ailerons and steering
-Mixing rudder and ailerons
-Mixing rudder and elevator
-Mixing depth and curvature
flaps -Mixing curvature and elevator
flaps -Shifting of the neutrals
-Adjustment of the airbrakes -Gyroscope
management
-Adjustments for the V-tail units -Differentials
of depth (Delta wings )
-Mixing the engine
-Adjusting the needle
-Throttle curve in 5 points
-idle down
Functions of the Model Helicopters menu Functions of the Model Helicopters menu
-8 swashplate types (H1, H2, H3, H4, HR3, HE3, HN3, H4X)
-6 flight conditions
-Adjustment of the collective pitch curve (5 points and 5 curves)
-Adjustment of the throttle curve (5 points and 4 curves)
-Adjustment of the throttle for auto-rotation -Correction of the
swashplate positions
-Adjustment of the throttle
-Mixing the pitch and direction
-Management of the
flybarless gyroscope -Gouvernor ( 700-3500 rpm)
Box contents :
- 12K mode 1 transmitter
- R3008SB receiver
- 6.0V 1800 Nimh HT5F1800B transmitter battery
- 220V charger / power supply
Compatible receivers:
T-FHSS Air: R3006SB, R3008SB & R3001SB
S-FHSS: R2001SB, R2008SB, R2006GS & R2106GF
