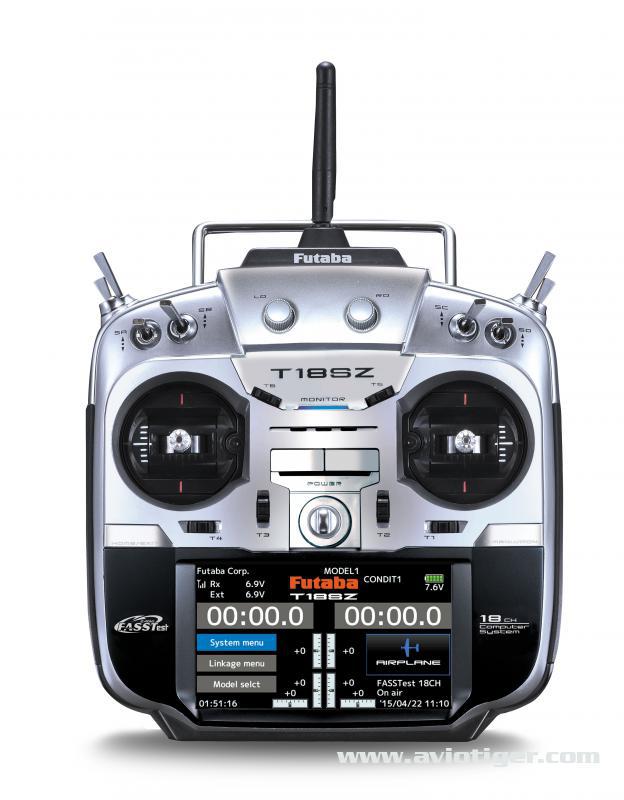

New Radio 18SZ delivered with Hall effect handles (Potless). The usual potentiometer is replaced by a magnet.
POTLESS stick technology:
· High resolution with 4096 steps
· More direct response
· No measurable latency
· Stable temperature
· Completely wear-free
· Hollow shafts for easy mounting of stick switches.
Technical characteristics:
4.3 inch color HVGA color LCD touch screen with LCD backlight. The screen is transflective, allowing both interior and exterior visibility.
S.BUS2 system (faster than SBUS 1)
Using the S.Bus2 system, multiple servos, gyroscopes and telemetry sensors can be easily installed with minimal cables.
Types of model: -Multicopter 8 trays. 7 types of wings and 3 types of empennages are available for airplanes and gliders. The functions and mixes required for each type of model are set in advance at the factory.
6.6V / 2100mAh Lithium Ferrite LiFe battery.
SD card (Not included) Model data can be saved to an SD card (SD: 32MB-2GB SDHC: 4GB-32GB).
“Edit” button: - Two edit buttons are provided, and the screen can quickly “return” to the home screen during operation.
Vibration function: -A function that alerts the operator to various alarms by vibrating the transmitter in addition to an audible warning device.
Voice Function The 18SZ is equipped with a function which allows the system to provide telemetry data by voice. This function can also be used with headphones (commercially available).
Kit contents :
- Transmitter in mode 2
- Receiver R7014SB
- Transmitter battery 2100 mah LIFE
- Charger 220V
- 1 electronic switch cord
- 1 user manual in French
Compatible receivers:
In FASSTest 18CH:
R7003SB
R7006SB
R7008SB
R7014SB
R7018SB
In FASSTest 12CH:
R7003SB
R7006SB
R7008SB
R7014SB
R7018SB
In FASST Multi:
R608FS
R6008HS
R6014HS
R6014FS
R6108SB
R6202SBW
R6203SB
R6203SBE
R6208SB
R6303SB
R6303SBE
R7006SB
R7014SB
R7018SB
In FASST 7CH:
R616FFM
R617FS
R6004FF
R6106HF
R6106HFC
R6202SBW
R6203SB
R6203SBE
R6303SB
R6303SBE
R7006SB
In T-FHSS Air:
R3001SB
R3006SB
R3008SB
R3106GF
In S-FHSS:
