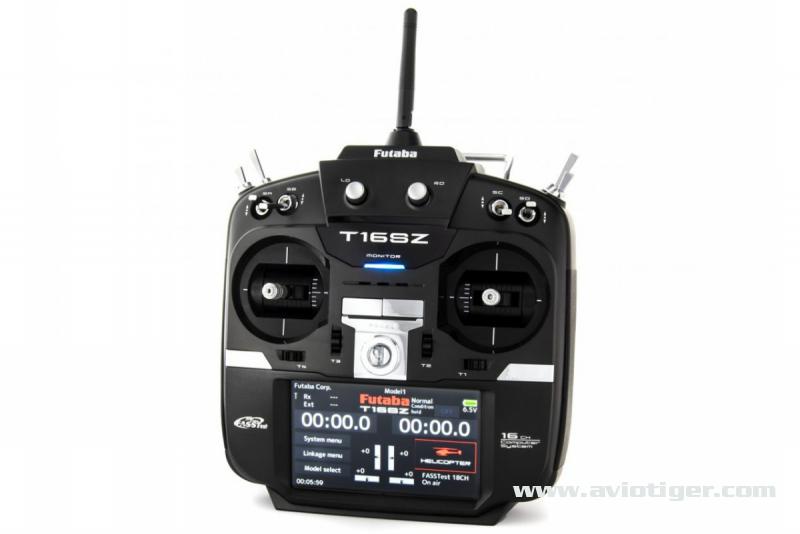

New Radio 16SZ delivered with hall effect handles (Potless). The usual potentiometer is replaced by a magnet.
POTLESS handle technology:
· High resolution with 4096 steps
· More direct response
· No measurable latency
· Stable temperature
· Completely wear-free
A real gateway to high-end radios. The 16SZ transmitter has the same programs and functions as the 18SZ with the exception of the date and time display. The mechanics take the handles of the very famous 14SG.
Technical characteristics:
* 16 proportional channels, + 2 inters.
* Compatible with FASSTest, FASST, S-FHSS and T-FHSS.
* Software update.
* 4.3 "color touch screen * 30 Model memories
* User and model name 15 characters.
* Sub Trim
* Reverse Servos
* Trim: mode rate setting ....
* Servo speed
* DR / AFR
* AFR curve (3)
* Curve AFR (17 points)
* Inter logic
* Flight conditions (8)
* 10 free mixes * SBUS servo adjustment program
* SD card slot
* Earphone jack (voice messages)
* Stopwatches
* Inters, knobs, levers, trims (assignable)
* Alarm sound and vibration
* Support Trainer
* Multi language
PROGRAMS AIRCRAFT
PROGRAM HELICOPTER
PROGRAM GLIDER
MULTICOPERATE PROGRAMS TELEMETRY
FUNCTIONS
All functions, mixes and all possibilities are not indicated above otherwise it would take at least 3 pages of presentation!
Kit content:
- Transmitter in mode 2
- Receiver R7008SB
- Transmitter battery 6V1800 mah Nimh
- Charger 220V
- 1 electronic switch cord
- 1 user manual in French
Compatible receivers:
In FASSTest 18CH:
R7003SB
R7006SB
R7008SB
R7014SB
R7018SB
In FASSTest 12CH:
R7003SB
R7006SB
R7008SB
R7014SB
R7018SB
In FASST Multi:
R608FS
R6008HS
R6014HS
R6014FS
R6108SB
R6202SBW
R6203SB
R6203SBE
R6208SB
R6303SB
R6303SBE
R7006SB
R7014SB
R7018SB
In FASST 7CH:
R616FFM
R617FS
R6004FF
R6106HF
R6106HFC
R6202SBW
R6203SB
R6203SBE
R6303SB
R6303SBE
R7006SB
in T-FHSS Air:
R3001SB
R3006SB
R3008SB
R3106GF
in S-FHSS:
R203GF
R204GF-E
R2001SB
R2006GS
R2008SB
R2104GF
R2106GF
