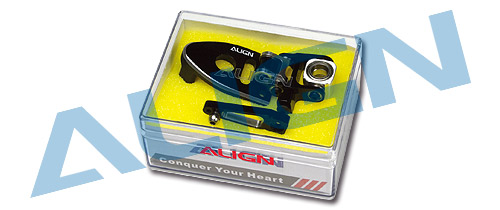

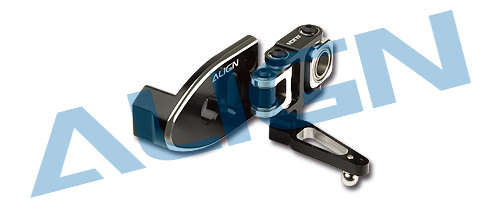

600Metal Tail Pitch Assembly

●Utilizes dual point attachment design for zero play and higher precision control feel.
●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
●6061-T6 Aluminum alloy material and CNC processed.
●Use for T-REX 600E/EFL PRO.
             T-REX 600N V2.
             T-REX 550E/E 3GX V2.

●I-shaped Arm × 1
●Mount Link × 1
●Metal plate(R) × 1
●Bearing MR105ZZ × 1(Φ5xΦ10x4mm)
●Bearing holder × 1(13.5x12.5x9.5mm )
●Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
●Tail control arm × 1(33.4x12.7x4mm)
●Bearing holder × 1(Φ7x Φ8.3x3.5mm)
●Bearing F682XZZ × 6(Φ2.5xΦ7.1xΦ2.6mm)
●Bearing MR117ZZ × 2(Φ7xΦ11xΦ3mm)
●Socket button head screw × 1(M3x5mm)
●Socket button head screw × 6(M2.5x5mm)
