Originele configuratie van KDS.
(voor specificatie zie tabblad extra informatie)

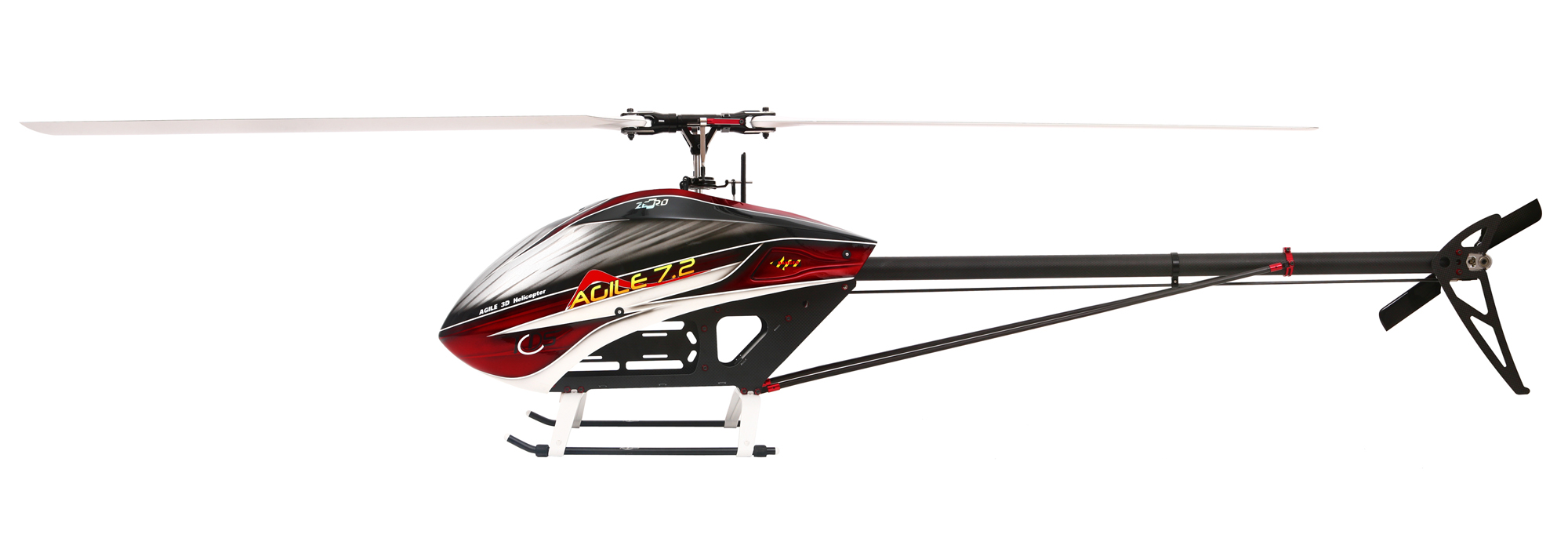

AGILE 7.2 PNP
Agile 7.2 was designed to offer something different; not just an improvement but a head start over what is commonly done. Agile 7.2 was created to fit each type of flight: Low to high speed, soft to hard 3D maneuvers and those not yet imagined!
Clever solutions were used to provide top-notch performance with very responsive controls, thus giving a feeling of incredible strength and outstanding smoothness of motion.
To make sure that nothing is left to chance, and to bring you the best overall design around, hundreds of test flights were performed by top international pilots.
Whatever story it is, the following sums it up: Agile stands for Agility!
Enjoy your Agile 7.2, you can’t go wrong!
●SPECIFICATIONS :
Length:1370mm
Height:420mm
Width:200mm
Main Rotor Diameter:Ø1560
Main Blade Length:690-713mm
Tail Rotor Diameter:Ø294mm
Tail Blade Length:105-115mm
Motor Pinion:19T
Motor KV:500-540KV
Driving Gear:(19/54)(20/66)
Gear Ratio:19T(9.37:1)
Tail Gear Ratio: 4.75:1
Weight(w/o power):4000g
Flying Weight: 5600g
Battery:22.2V 5000mAh x2
ESC:160-200A
●CONFIGURATION:
AGILE 7.2 kit and FG hand-painted canopy
690mm CF 3D main blades
112MM tail blade
KDS BL4725-540KV Brushless motor
KDS BL680 hv cyclic Servo*3PCS
KDS BL690 hv tail Servo*1PCS
KDS EBAR V2 Flybarless system
●REQUIRED COMPONENTS :
ESC : 120-160 A
Motor Kv / 500-550
2x Battery (5000 - 6S )
