Following the release of the T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. Aligns most anticipated helicopter release in 2016 the T-REX 470L is born. No matter whether you are a newcomer or a professional, the brand new T-REX 470L will give you the new flying feel again.

470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from 5mm to 6mm, while the feathering shaft outer dimension was increased from 4mm to 5mm. The 470L has adopt a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The 470L utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes T-REX 470L more avant-garde and dynamic.

The T-REX 470L is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor.

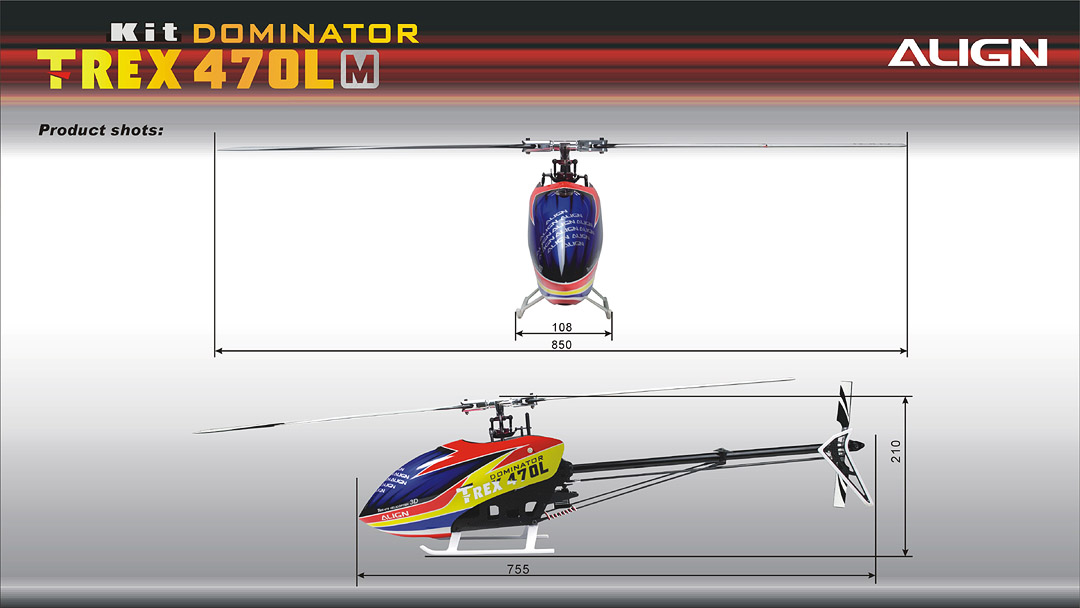

Length: 755mm
Height: 210mm
Width: 108mm
Main Blade Length: 380mm
Main Rotor Diameter: 850mm
Tail Rotor Diameter: 181mm
Motor Pinion Gear: 11T
Main Drive Gear: 121T
Main Drive Pulley: 56T
Tail Drive Gear: 15T
Drive Gear Ratio: 11:1:3.73
Weight (w/o battery): 860g

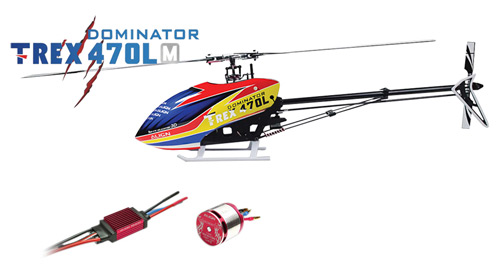

• 1x T-REX 470L Dominator Kit

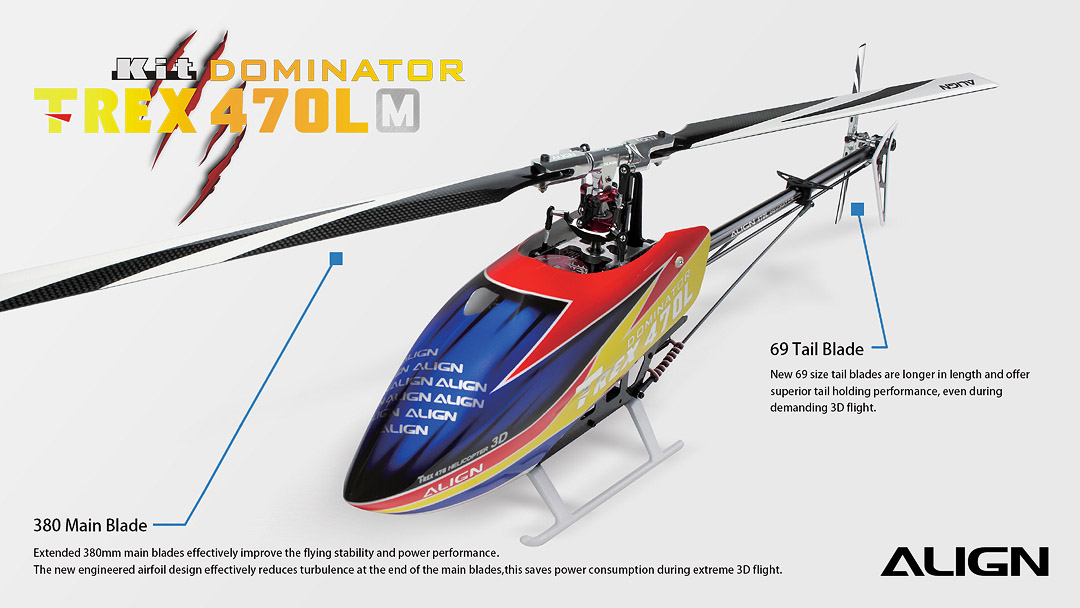

• 2x 380mm Carbon Fiber Blade
• 2x 69mm Carbon Tail Blade
• 1x 470MX Brushless Motor (1800KV)
• 1x RCE-BL50X 50A Brushless ESC


Required for assembly

• 1x Transmitter (6-channel or more, helicopter system)
• 1x Receiver (6-channel or more)
• 1x Pitch gauge or Digital Pitch Gauge
• 1x Flight battery 6S LiPo 1400~1900mAh
• 1x 3x Swashplate Servo
• 1x Tail Servo
• 1x Flybarless System
