The NEW T-REX 550X is definitely a significant leap forward in performance, enhanced by increased power, the integration of numerous innovative design changes, and lightweight improvements. The T-REX 550X performance is outstanding!
The brand new FL Flybarless Rotor Head System utilizes an extremely low CG design, reducing resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 550X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. In addition, the T-REX 550X's lightweight design is 200~250g (Combo250g/Super Combo 200g) lighter than our pervious model, this effectively increase the power and improves flight time.
The T-REX 550X utilizes the powerful 730MX (960KV) motor and our RCE-BL100A Brushless ESC which both are highly efficient providing superior power, improving the performance of the 6S power system. The NEW DS820M/DS825M high voltage brushless servos are extremely efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
With improved performance and increased power, as well as included top of the line electronic equipment. The new T-REX 550 X will arouse your enthusiasm and devotion to the T-REX Family.

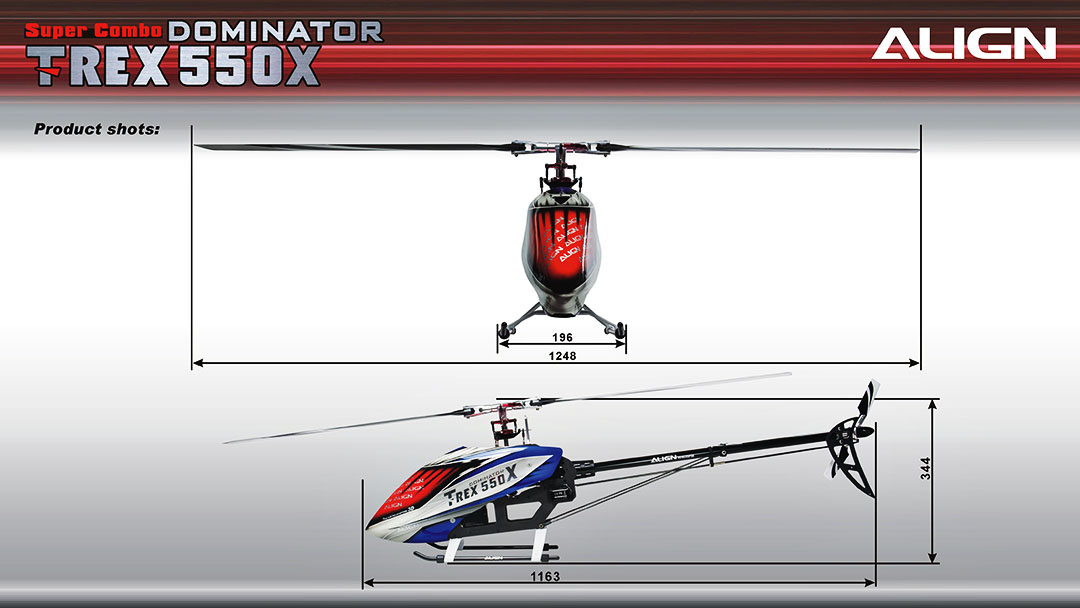

Main Rotor Diameter: 1248mm
Main Blade Lenght: 550mm
Tail Rotor Diameter: 254mm
Motor Drive Gear: 16T
Main Drive Gear: 112T
Autorotation Tail Drive Gear: 131T
Tail Drive Gear: 34T
Drive Gear Ratio: 7:1:3.85
Weight(w/o power system): 2590g

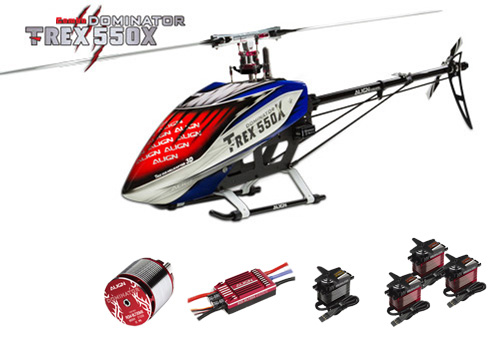

• 1x T-REX 550X DOMINATOR
• 2x 550 Carbon Fiber Blade
• 2x 90mm 3K Carbon Fiber Tail Blade
• 1x 730MX Brushless Motor (960KV)
• 3x DS820M High Voltage Brushless Servo
• 1x DS825M High Voltage Brushless Servo
• 1x RCE-BL100A Brushless ESC
• 1x Microbeast PLUS Flybarless System
Required for assembly
• 1x Transmitter (7-channel or more,helicopter system)
• 1x Receiver (7-channel or more)
• 1x Pitch gauge or Digital Pitch Gauge
• 1x 6S Li-Po 2600~5200mAh battery
