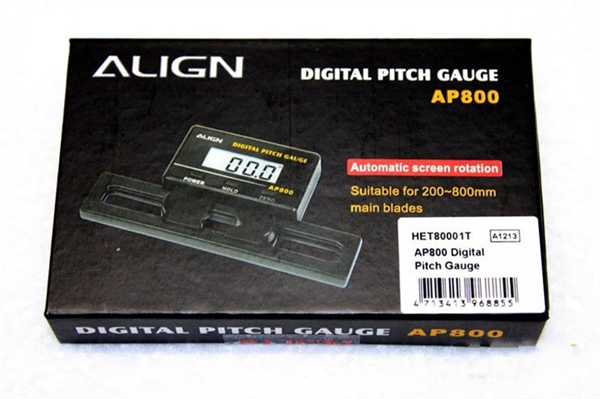

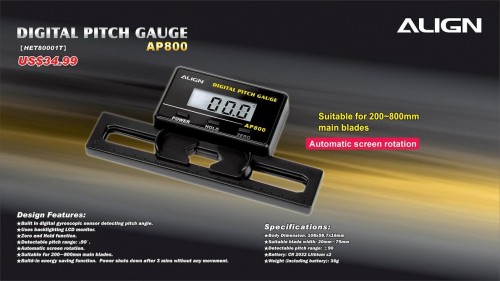

AP800 Digital Pitch Gauge

Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters.
Auto-detecting Horizontal level, with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.



Features:
• Auto-detecting Horizontal level
• Uses backlighting LCD monitor
• Zero and Lock function
• Detectable pitch range: -90°C ~ 90°C
• Automatic screen rotation
• Suitable for 200 ~ 800mm main blades
• Build-in energy saving function. Power shuts down after 3 mins without any movement


Specification:
• Body Dimension: 108x53.9x16mm
• Suitable blade width: 20mm ~ 74mm
• Detectable pitch range: +/- 90°
• Resolution: 0.1°
• Battery: CR 2032 Lithium x 2
• Weight: 38g (including battery)
