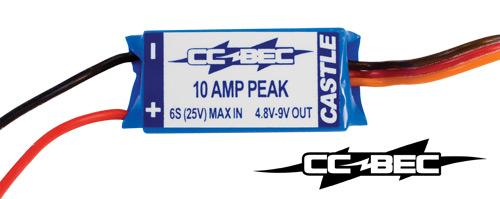

CC-010-0004-00

Extra informatie

Our Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

NOTE: CC BEC Pro should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Our Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

NOTE: CC BEC Pro should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

CC BEC Specs	CC BEC Pro Specs

Retail Price
$24.95	$44.95
Item Number
010-0004-00	010-0004-01
Length
1.2" (30mm)	1.69" (43mm)
Width
0.6" (15mm)	1.3" (33mm)
Height
0.4" (10mm)	0.94" (24mm)
Weight
0.4 oz* (11g)*	1 oz* (29g*)
Max Amps
10 amps peak Max continuous current <12 volts input = 7 amps <24 volts input = 5 amps	20 amps peak Max continuous current 16 volts input = 15 amps 24 volts input = 13 amps 32 volts input = 11 amps 40 volts input = 9 amps 48 volts input = 8 amps
Max Volts
5v to 25v 2s to 6s LiPo	Cars: 6s (25v) Airplanes: 10s (40v) Helicopters (with brake disabled): 12s (50v)
Adjustable Output Voltage
4.8V to 9 volts.	4.8V to 12.5V

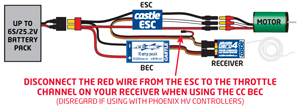

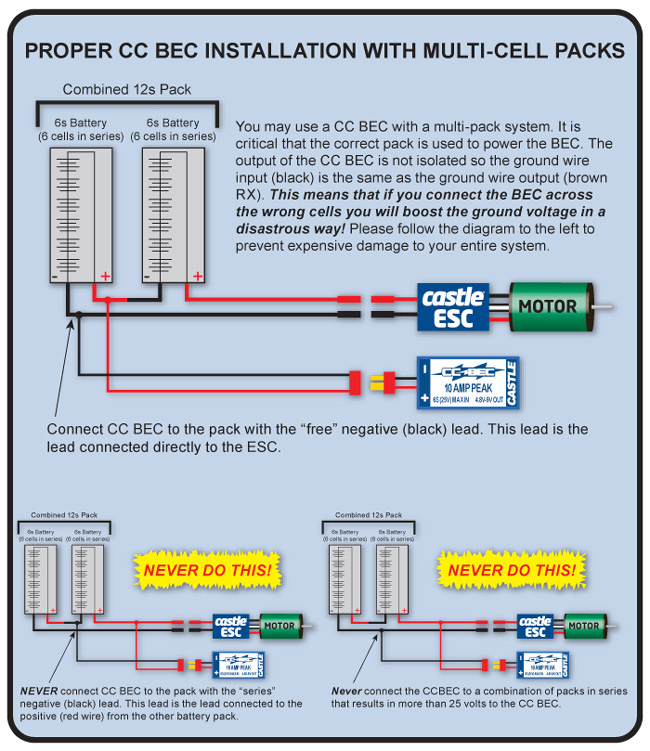

Wiring Diagrams (click image to open)
