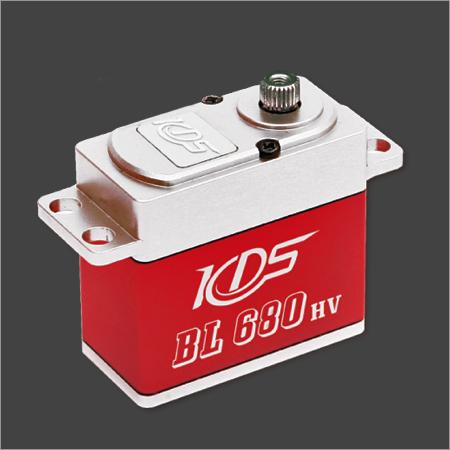

BL680 HV Brushless Digital Servo

Artikelnr: 2004-12 BL 6

(0 Beoordelingen)

Betrouwbare en betaalbare HV servo.

Standard size cyclic servo, max 8,4V.

Specs : 6,0V - 14 kg-cm - 0.09 sec/60°

Specs : 7,4V - 17 kg-cm - 0.08 sec/60°

Specs : 8,4V - 20 kg-cm - 0.07 sec/60°

€82,50

Voorraad

Voorraad:

0 items

Beschrijving

2004-12 BL 6

Extra informatie

Product features:
Using the most advanced micro brushless motor.
Metal shell,Instant cooling and high efficiency.
Metal gear design,more reliable action and durable and so accurate.
Large torque,high speed.

Specifications:
Control mode: pulse width control
Working frequency: 1520μs / 333hz
Motor type: Brushless Motor
Working voltage: DC6.0~8.4 V
Working temperature: -10° to + 60°C
Speed: 0.07sec/60 °@8.4V ) 0.08sec/60° @7.4V)
0.09sec/60° @6.0V
Torque : 20kg.cm @8.4V ) 17kg.cm @7.4V)
14kg.cm @6.0V)
Dimension: 40.5X20X37mm
Weight: 71g
