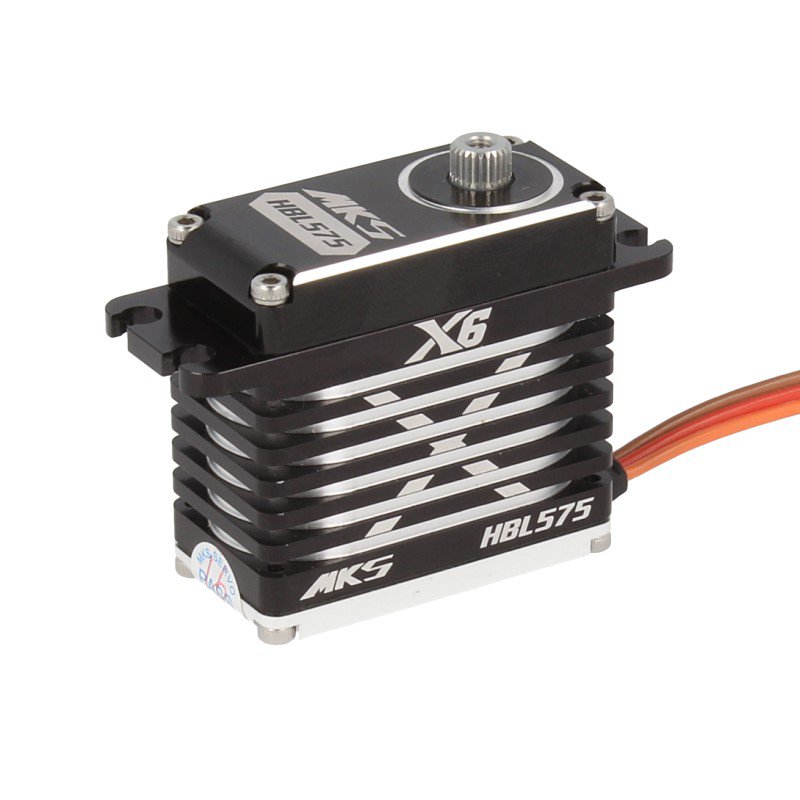

HBL575 HV Digital Servo brushless

Artikelnr: S0026001
188,99
Voorraad
Voorraad:
  0  items
Beschrijving

S0026001

Extra informatie

HBL575 - High Speed Servo

Perfect Servo for 1/10, 1/8 scale buggy.
High speed, incredible efficiency, and low power consumption.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
Extremely strong Chrome-Titanium alloy gear.

Specifications:


  • Torque: 18 kg/cm (6.0V) - 22 kg/cm (7.4V) - 24 kg/cm (8.2V)
  • Speed: 0.082s (6.0V) - 0.066s (7.4V) - 0.06s (8.2V)
  • Weight: 71.4 g

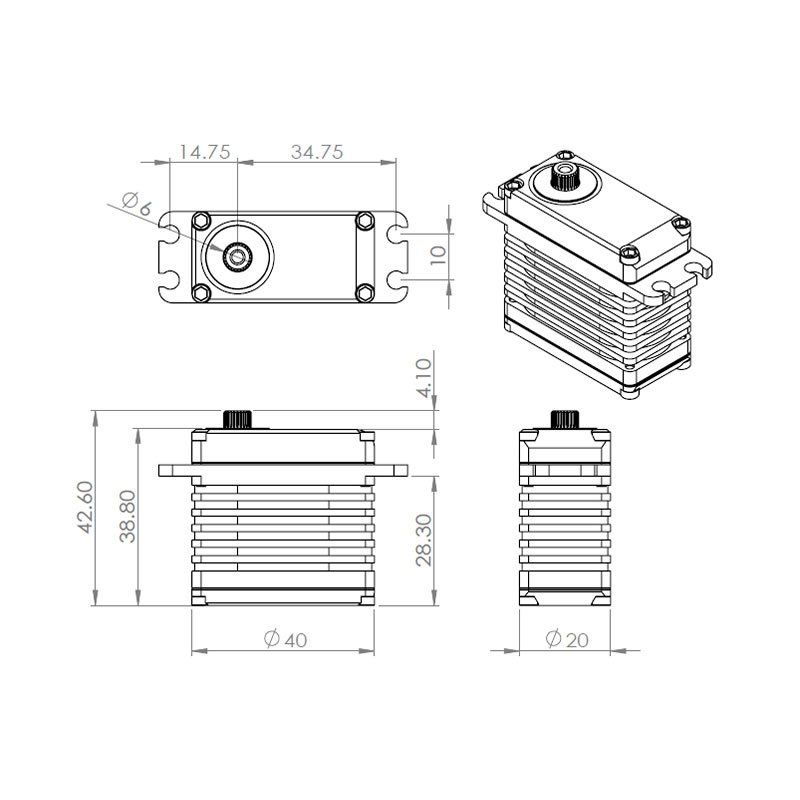

  • Dimension: 40 x 20 x 38.5 mm
  • Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
  • Working frequency: 1520µs / 333Hz
  • Dead Band: 0.0008 ms
  • Bearing: 2BB
  • Motor: Japan High Quality Brushless Motor
  • Gear: Chrome-Titanium alloy gear
