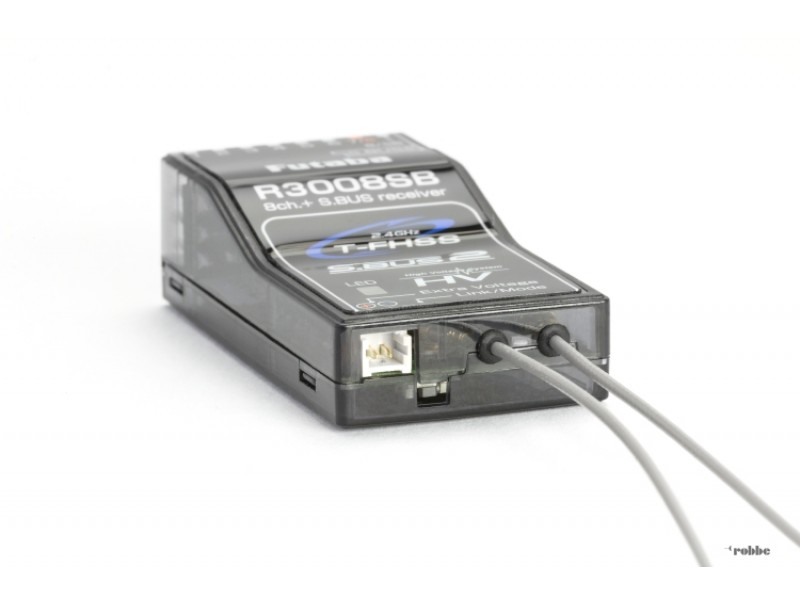

R3008SB T-FHSS 2.4GHz receiver

In spite of its small size of only 47.3 x 24.9 x 14.3 mm and a weight of just 11 g the R3008SB receiver is a multi-talented device. It features an integral telemetry transmitter, and can send up to 32 telemetry data sets to the ground over a range of up to 1000 m.
Naturally the receiver features eight PWM outputs for normal servos. Channel 8 is switchable to S.BUS(1) mode, enabling up to ten S.BUS(1) servos or other devices to be connected to this output.
The switched channels 9 and 10 can only be accessed via the S.BUS 1 or 2 output, and require suitable S-BUS compatible devices / servos. Both S-BUS2 servos and sensors can be connected to the separate bi-directional S.BUS2 socket; up to 32 telemetry channels can be transmitted. The integral transmitter sends the telemetry data present at the S.BUS2 socket to the T-FHSS® transmitter, where the data are displayed on-screen or generated in audible form (speech, vibration alarm, sound or beeper).
When the receiver is connected, data such as receiver battery voltage, external voltage (max. 70 V DC) and aerial signal strength, i.e. the essential telemetry data, are automatically transmitted to the ground.
This receiver "only" works with the new telemetry-capable T-FHSS^® transmitters. It is not compatible with FASST or FASSTest^® or S-FHSS transmitters or these types of modulation.

Kanalzahl: 10
Gewicht ca.: 11
Kanalraster: 2000
Frequenzkanäle: 31
Antennenlänge: 14
