RD810 8 kanaals DSM2 & DSMX Compatible 2.4GHz

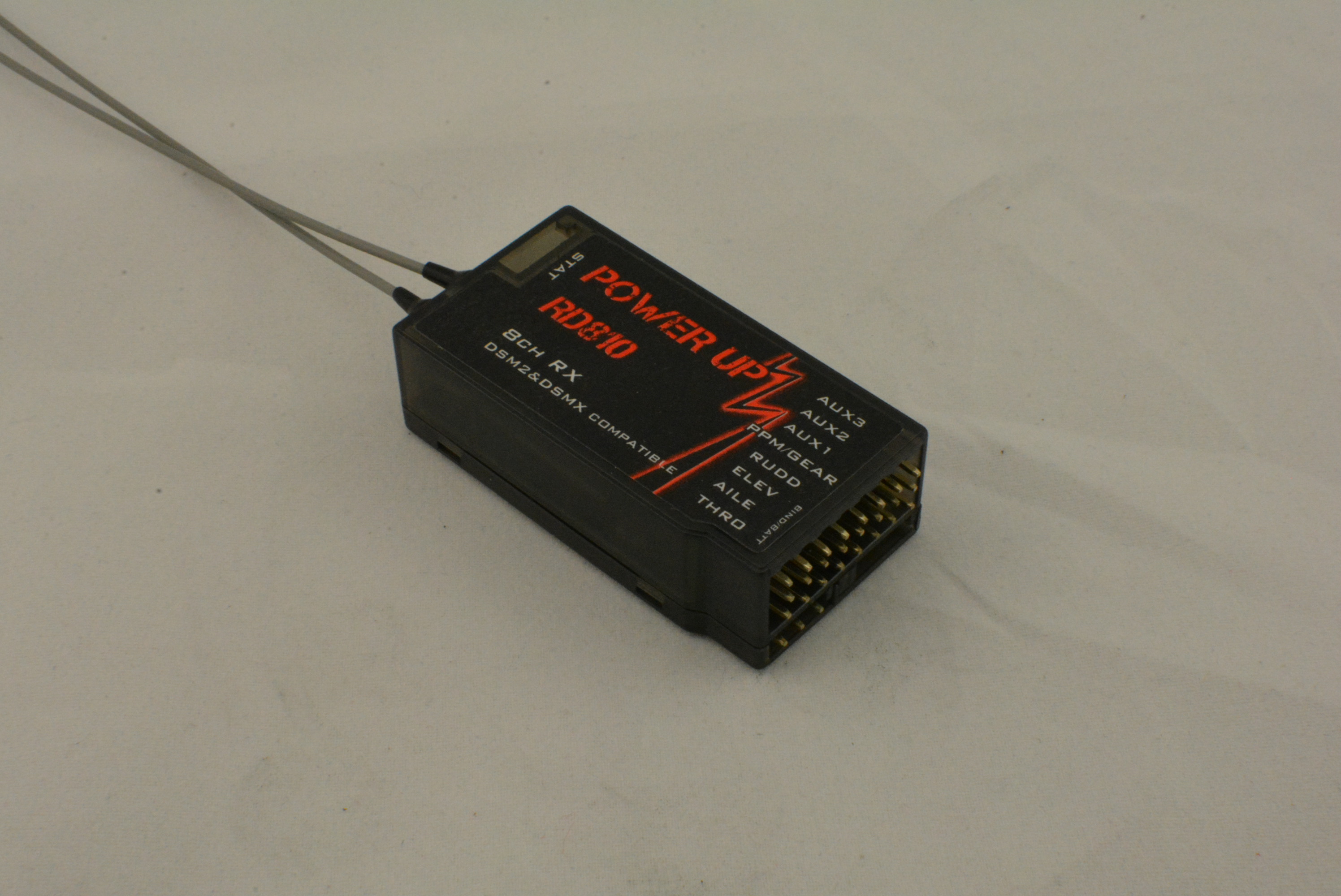

The Power Up RD810 2.4 ghz 8 channel receiver is compatible with all DSM2 and DSMX aircraft radios. It's small size and light weight makes it ideal for small air frames.  Range is 2500 feet or more with proper installation.

*This receiver features a satellite port which will permit the installation of an expansion satellite receiver for increased range.

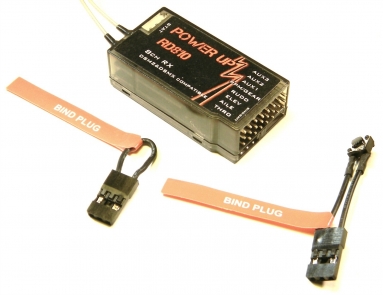

***The Power Up RD810 2.4GHz 8 Channel Receiver includes TWO DIFFERENT BIND PLUGS.  These two bind plugs serve separate functions as outlined in the manual***

Specifications:

Dimensions:  46mm x 24mm x 14mm

Dual antennae:  13.75cm each

Weight:  10 grams

Operating Voltage:  4.8v - 8.4v

8 Channels:  Throttle, Aileron, Elevator, Rudder, Gear/PPM output, Aux 1, Aux 2, Aux 3, plus battery/bind port.  This receiver also features a data port.

Range: 800M+ (2500+ feet)/Full Range

Compatible with DSM2 and DSMX aircraft radio and module systems.

Note:

This receiver is compatible with Spektrum DSM2 amd DSMX radios, but it is not a Spektrum brand receiver. The Spektrum brand is a trademark of Horizon Hobbies USA.
