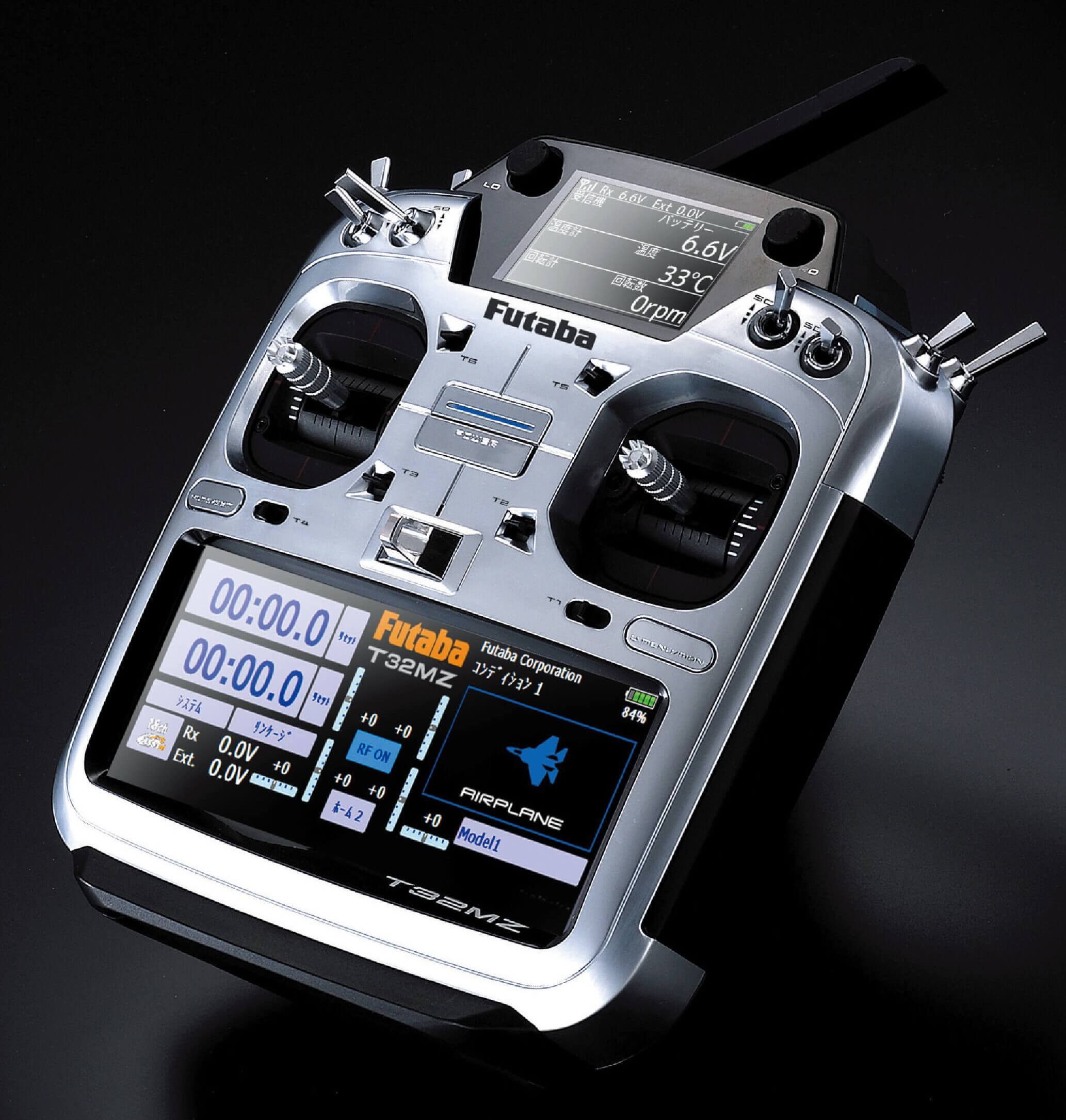

New high-end FUTABA radio for seasoned competitors and modelers.
The 32MZ transmitter has adopted the “FASSTest” two-way communication system.
Receiver data can be verified in your transmitter through telemetry.
The FASSTest is a dedicated 2.4 GHz system with a maximum of 18 channels (16-channel linear + 2-way switch).
Technical characteristics: LANE EXTENSION (MULTIPROP
FUNCTION):
The multiprop function can be used using the MPDX-1 multiprop decoder sold separately.
The multiprop function is a function which divides a channel into eight channels and therefore expands the number of channels.
You can use up to 2 x MPDX-1 and expand up to 32 channels as follows:
- Linear channel - 14 channels (2 channels are used by the multiprop function)
- ON / OFF channel
- 2 channels - Multiprop channel - 16
channels Multiprop channels have the following differences compared to normal linear channels.
The resolution of the multiprop channel is lower than that of the linear channel.
Simultaneous use of multiple multiprop channels may reduce the operational response of the multiprop.
Multiprop channels cannot use the mix function.
S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyroscopes and telemetry sensors are easily installed with minimal cables.
WINDOWS INTEGEDD COMPACT 7:
T32MZ uses the world famous Microsoft Windows Embedded Compact 7 which offers exceptional reliability and valuable resources.
MAIN LCD DISPLAY:
The T32MZ features an HVGA (640 x 240 pixel) color backlit LCD touch screen. The screen is made with a transflective construction that allows visibility both indoors and outdoors. SUP COLOR LCD DISPLAY:
The T32MZ has a color LCD display. It will be possible to know the telemetry information separately from the main display. The sub-display uses a reflective LCD screen that provides good visibility even outdoors. MUSIC PLAY:
The T32MZ can play WMA (Windows Media Audio) files on a microSD card. You can listen to music using the internal speaker or stereo headphones through the headphone jack. An inter can be assigned to start / stop your music.
VOICE RECORDING:
You can record your own voice using the internal microphone, then play the commands assigned to certain interiors. The recording time is up to 3 seconds and 24 voice files can be recorded.
Secure data (SD card):
Model data, music files, voice files, and image files can be stored on an optional microSD card. The microSD card is also used when updating the software / functionality of the T32MZ. HIGH CAPACITY LITHIUM POLYMER BATTERY (6600MAH):
High capacity Lithium Polymer battery allows you to extend your flight time.
EDITING:
The touch screen and two input keys allow you to edit your model in the easiest way for you.
FUNCTIONS:
The internal dual processors exploit the many functions of the 32MZ and optimize the response time. Most of the mixing functions are managed by curves which allow very precise adjustments.
SLEEVES:
Each axis is supported by two ball bearings. The sticks have non-contact potentiometers of the magnetic detection type. This allows for finer and more precise operation. In addition, the throttle lever has an adjustment (screw accessible from the outside, which allows you to choose the notch or spring.
REPLACEABLE INTERS:
You can replace 4 of the slide switches located at the top right and left, by optional switches (two position, three position, momentary, etc.)
VIBRATION FUNCTION:
Low voltage and other alarms generate vibration. The alarms or vibrations to be used can be selected by the user.
R7108SB:
This set comes with the R7108SB S.Bus2 dual antenna "Diversity" receiver offering two-way communication.
CONTENT of this T32MZ set:
-T32MZ transmitter
-R7108SB
-LT1F6600B Lithium polymer battery and power adapter
-Switch
-Tool box (includes a special template for adjustment)
-String
-Aluminum case
-French Quick Notice.
TRANSMITTER SPECIFICATIONS:
- 2.4 GHz band
- 2-stick, 18-channel, 2.4 GHz
FASSTest / FASST / T-FHSS / S-FHSS system - 3.8V lithium-polymer power supply L1F6600B
- RF power: 100 mW ERP
- WEIGHT (with battery): 1126 g
R7108SB RECEIVER SPECIFICATIONS:
SIZE: 24.9mm x 47.3mm x 14.3mm
WEIGHT: 12.0g
Power supply: 3.7 - 8.4V
